An abstract class that is inherited by all the homology engines. More...

#include <engines.h>

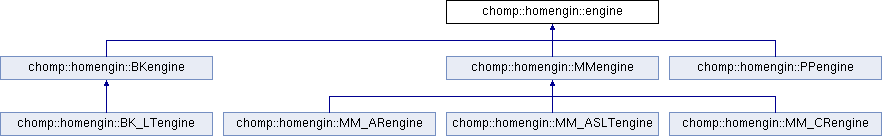

Inheritance diagram for chomp::homengin::engine:

Public Types
typedef std::vector< const engine * >	enginelist
	The type of a list of engines. More...

Public Member Functions
virtual int	speed () const
	The speed of the engine: The higher the number, the better. More...

virtual bool	dimsupported (int dim) const
	Is this dimension supported by this engine? More...

virtual int	memory (const cubfile &X) const
	Rough memory usage estimate for a single set of cubes. More...

virtual bool	relative () const
	Does this engine compute relative homology? More...

virtual bool	elementary () const
	Is this engine capable of processing elementary cubes? More...

virtual bool	spacewrapping () const
	Does this engine support space wrapping? More...

virtual void	homology (const cubfile &x, algstruct< chomp::homology::integer > &h) const
	Compute the homology of the given set of cubes. More...

virtual void	homology (const cubfile &x, const cubfile &y, algstruct< chomp::homology::integer > &h) const
	Compute the relative homology of the given pair of sets of cubes. More...

virtual const char *	name () const
	The name of the engine to be used in the command line. More...

virtual std::ostream &	describe (std::ostream &out) const
	Describes this particular engine. More...

Static Public Member Functions
static std::ostream &	showlist (std::ostream &out, const engine::enginelist &elist=engine::engines)
	Shows a list of available homology engines with descriptions. More...

static const engine *	find (const cubfile X, const cubfile Y, const engine::enginelist &elist=engine::engines)
	Finds the most appropriate homology engine. More...

static const engine *	find (const cubfile *X, const engine::enginelist &elist=engine::engines)
	Finds the most appropriate homology engine for just one set. More...

static const engine *	find (const char *name, const engine::enginelist &elist=engine::engines)
	Finds a homology engine with the given name. More...

Static Public Attributes
static enginelist	engines
	A list of all the engines that have been defined so far. More...

Protected Member Functions
	engine ()
	The default constructor: Add the engine to the list. More...

virtual	~engine ()
	The destructor: Remove the engine from the list. More...

Detailed Description

An abstract class that is inherited by all the homology engines.

Definition at line 78 of file engines.h.

Member Typedef Documentation

◆ enginelist

typedef std::vector<const engine *> chomp::homengin::engine::enginelist

The type of a list of engines.

Definition at line 82 of file engines.h.

Constructor & Destructor Documentation

◆ engine()

chomp::homengin::engine::engine ( )

inlineprotected

The default constructor: Add the engine to the list.

Definition at line 89 of file engines.h.

        {
                engines. push_back (this);
                return;
        }

References engines.

◆ ~engine()

virtual chomp::homengin::engine::~engine ( )

inlineprotectedvirtual

The destructor: Remove the engine from the list.

Definition at line 96 of file engines.h.

        {
                enginelist::iterator it = std::find (engines. begin (),
                        engines. end (), this);
                if (it != engines. end ())
                        engines. erase (it);
                return;
        }

References engines.

Member Function Documentation

◆ describe()

virtual std::ostream & chomp::homengin::engine::describe ( std::ostream & out ) const

inlinevirtual

Describes this particular engine.

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, chomp::homengin::BK_LTengine, chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, chomp::homengin::MM_ASLTengine, and chomp::homengin::MMengine.

Definition at line 164 of file engines.h.

        {
                out << "This is an unknown homology engine.\n";
                return out;
        }

◆ dimsupported()

virtual bool chomp::homengin::engine::dimsupported ( int dim ) const

inlinevirtual

Is this dimension supported by this engine?

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, chomp::homengin::MMengine, chomp::homengin::MM_CRengine, and chomp::homengin::MM_ARengine.

Definition at line 113 of file engines.h.

        {
                return false;
        }

◆ elementary()

virtual bool chomp::homengin::engine::elementary ( ) const

inlinevirtual

Is this engine capable of processing elementary cubes?

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, and chomp::homengin::MMengine.

Definition at line 132 of file engines.h.

        {
                return false;
        }

◆ find() [1/3]

static const engine * chomp::homengin::engine::find	(	const char *	name,
		const engine::enginelist &	elist = `engine::engines`
	)

static

Finds a homology engine with the given name.

Throws an exception if none can be found.

◆ find() [2/3]

static const engine * chomp::homengin::engine::find	(	const cubfile *	X,
		const cubfile *	Y,
		const engine::enginelist &	elist = `engine::engines`
	)

static

Finds the most appropriate homology engine.

Throws an exception if none can be found.

Referenced by ComputeBettiNumbers(), and find().

◆ find() [3/3]

static const engine * chomp::homengin::engine::find	(	const cubfile *	X,
		const engine::enginelist &	elist = `engine::engines`
	)

inlinestatic

Finds the most appropriate homology engine for just one set.

Throws an exception if none can be found.

Definition at line 181 of file engines.h.

        {
                return find (X, 0, elist);
        }

References find().

◆ homology() [1/2]

virtual void chomp::homengin::engine::homology	(	const cubfile &	x,
		algstruct< chomp::homology::integer > &	h
	)		const

inlinevirtual

Compute the homology of the given set of cubes.

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, chomp::homengin::MM_ASLTengine, and chomp::homengin::MMengine.

Definition at line 144 of file engines.h.

        {
                throw "Homology computation not supported.";
        }

◆ homology() [2/2]

virtual void chomp::homengin::engine::homology	(	const cubfile &	x,
		const cubfile &	y,
		algstruct< chomp::homology::integer > &	h
	)		const

inlinevirtual

Compute the relative homology of the given pair of sets of cubes.

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, and chomp::homengin::MMengine.

Definition at line 151 of file engines.h.

        {
                throw "Relative homology computation not supported.";
        }

◆ memory()

virtual int chomp::homengin::engine::memory ( const cubfile & X ) const

inlinevirtual

Rough memory usage estimate for a single set of cubes.

Returns 0 if unknown, -1 if not enough memory.

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, and chomp::homengin::MMengine.

Definition at line 120 of file engines.h.

        {
                return 0;
        }

◆ name()

virtual const char * chomp::homengin::engine::name ( ) const

inlinevirtual

The name of the engine to be used in the command line.

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, chomp::homengin::BK_LTengine, chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, chomp::homengin::MM_ASLTengine, and chomp::homengin::MMengine.

Definition at line 158 of file engines.h.

        {
                return "";
        }

◆ relative()

virtual bool chomp::homengin::engine::relative ( ) const

inlinevirtual

Does this engine compute relative homology?

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, and chomp::homengin::MMengine.

Definition at line 126 of file engines.h.

        {
                return false;
        }

◆ showlist()

static std::ostream & chomp::homengin::engine::showlist	(	std::ostream &	out,
		const engine::enginelist &	elist = `engine::engines`
	)

static

Shows a list of available homology engines with descriptions.

◆ spacewrapping()

virtual bool chomp::homengin::engine::spacewrapping ( ) const

inlinevirtual

Does this engine support space wrapping?

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, and chomp::homengin::MMengine.

Definition at line 138 of file engines.h.

        {
                return false;
        }

◆ speed()

virtual int chomp::homengin::engine::speed ( ) const

inlinevirtual

The speed of the engine: The higher the number, the better.

Reimplemented in chomp::homengin::PPengine, chomp::homengin::BKengine, chomp::homengin::BK_LTengine, chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, chomp::homengin::MM_ASLTengine, and chomp::homengin::MMengine.

Definition at line 107 of file engines.h.

        {
                return 0;
        }

Member Data Documentation

◆ engines

enginelist chomp::homengin::engine::engines

static

A list of all the engines that have been defined so far.

Definition at line 85 of file engines.h.

Referenced by engine(), and ~engine().

The documentation for this class was generated from the following file:

capd/homengin/engines.h
