A general class for the MM* bitmap-based engines. More...

#include <engines.h>

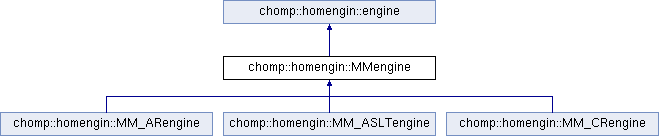

Inheritance diagram for chomp::homengin::MMengine:

Public Member Functions
virtual int	speed () const =0
	The speed of the engine: The higher the number, the better. More...

bool	dimsupported (int dim) const
	Is this dimension supported by this engine? More...

int	memory (const cubfile &X) const
	Rough memory usage estimate for a single set of cubes. More...

bool	relative () const
	Does this engine compute relative homology? More...

bool	elementary () const
	Is this engine capable of processing elementary cubes? More...

bool	spacewrapping () const
	Does this engine support space wrapping? More...

virtual void	homology (const cubfile &x, algstruct< chomp::homology::integer > &h) const =0
	Compute the homology of the given set of cubes. More...

void	homology (const cubfile &x, const cubfile &y, algstruct< chomp::homology::integer > &h) const
	Compute the relative homology of the given pair of sets of cubes. More...

virtual const char *	name () const =0
	The name of the engine to be used in the command line. More...

virtual std::ostream &	describe (std::ostream &out) const =0
	Describes this particular engine. More...

virtual int	speed () const
	The speed of the engine: The higher the number, the better. More...

virtual bool	dimsupported (int dim) const
	Is this dimension supported by this engine? More...

virtual int	memory (const cubfile &X) const
	Rough memory usage estimate for a single set of cubes. More...

virtual bool	relative () const
	Does this engine compute relative homology? More...

virtual bool	elementary () const
	Is this engine capable of processing elementary cubes? More...

virtual bool	spacewrapping () const
	Does this engine support space wrapping? More...

virtual void	homology (const cubfile &x, algstruct< chomp::homology::integer > &h) const
	Compute the homology of the given set of cubes. More...

virtual void	homology (const cubfile &x, const cubfile &y, algstruct< chomp::homology::integer > &h) const
	Compute the relative homology of the given pair of sets of cubes. More...

virtual const char *	name () const
	The name of the engine to be used in the command line. More...

virtual std::ostream &	describe (std::ostream &out) const
	Describes this particular engine. More...

Protected Member Functions
	MMengine ()
	The default constructor. More...

	~MMengine ()
	The destructor. More...

Protected Member Functions inherited from chomp::homengin::engine
	engine ()
	The default constructor: Add the engine to the list. More...

virtual	~engine ()
	The destructor: Remove the engine from the list. More...

Additional Inherited Members
Public Types inherited from chomp::homengin::engine
typedef std::vector< const engine * >	enginelist
	The type of a list of engines. More...

Static Public Member Functions inherited from chomp::homengin::engine
static std::ostream &	showlist (std::ostream &out, const engine::enginelist &elist=engine::engines)
	Shows a list of available homology engines with descriptions. More...

static const engine *	find (const cubfile X, const cubfile Y, const engine::enginelist &elist=engine::engines)
	Finds the most appropriate homology engine. More...

static const engine *	find (const cubfile *X, const engine::enginelist &elist=engine::engines)
	Finds the most appropriate homology engine for just one set. More...

static const engine *	find (const char *name, const engine::enginelist &elist=engine::engines)
	Finds a homology engine with the given name. More...

Static Public Attributes inherited from chomp::homengin::engine
static enginelist	engines
	A list of all the engines that have been defined so far. More...

Detailed Description

A general class for the MM* bitmap-based engines.

Definition at line 408 of file engines.h.

Constructor & Destructor Documentation

◆ MMengine()

chomp::homengin::MMengine::MMengine ( )

inlineprotected

The default constructor.

Definition at line 412 of file engines.h.

        {
                return;
        }

◆ ~MMengine()

chomp::homengin::MMengine::~MMengine ( )

inlineprotected

The destructor.

Definition at line 418 of file engines.h.

        {
                return;
        }

Member Function Documentation

◆ describe()

virtual std::ostream & chomp::homengin::MMengine::describe ( std::ostream & out ) const

pure virtual

Describes this particular engine.

Reimplemented from chomp::homengin::engine.

Implemented in chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, and chomp::homengin::MM_ASLTengine.

◆ dimsupported()

bool chomp::homengin::MMengine::dimsupported ( int dim ) const

inlinevirtual

Is this dimension supported by this engine?

Reimplemented from chomp::homengin::engine.

Reimplemented in chomp::homengin::MM_CRengine, and chomp::homengin::MM_ARengine.

Definition at line 428 of file engines.h.

        {
                return (dim == embeddingDim);
        }

◆ elementary()

bool chomp::homengin::MMengine::elementary ( ) const

inlinevirtual

Is this engine capable of processing elementary cubes?

Reimplemented from chomp::homengin::engine.

Definition at line 444 of file engines.h.

        {
                return false;
        }

◆ homology() [1/2]

virtual void chomp::homengin::MMengine::homology	(	const cubfile &	x,
		algstruct< chomp::homology::integer > &	h
	)		const

pure virtual

Compute the homology of the given set of cubes.

Reimplemented from chomp::homengin::engine.

Implemented in chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, and chomp::homengin::MM_ASLTengine.

◆ homology() [2/2]

void chomp::homengin::MMengine::homology	(	const cubfile &	x,
		const cubfile &	y,
		algstruct< chomp::homology::integer > &	h
	)		const

inlinevirtual

Compute the relative homology of the given pair of sets of cubes.

Reimplemented from chomp::homengin::engine.

Definition at line 460 of file engines.h.

        {
                throw "The MM* engines do not support relative homology.";
        }

◆ memory()

int chomp::homengin::MMengine::memory ( const cubfile & X ) const

virtual

Rough memory usage estimate for a single set of cubes.

Returns 0 if unknown, -1 if not enough memory.

Reimplemented from chomp::homengin::engine.

◆ name()

virtual const char * chomp::homengin::MMengine::name ( ) const

pure virtual

The name of the engine to be used in the command line.

Reimplemented from chomp::homengin::engine.

Implemented in chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, and chomp::homengin::MM_ASLTengine.

◆ relative()

bool chomp::homengin::MMengine::relative ( ) const

inlinevirtual

Does this engine compute relative homology?

Reimplemented from chomp::homengin::engine.

Definition at line 438 of file engines.h.

        {
                return false;
        }

◆ spacewrapping()

bool chomp::homengin::MMengine::spacewrapping ( ) const

inlinevirtual

Does this engine support space wrapping?

Reimplemented from chomp::homengin::engine.

Definition at line 450 of file engines.h.

        {
                return false;
        }

◆ speed()

virtual int chomp::homengin::MMengine::speed ( ) const

pure virtual

The speed of the engine: The higher the number, the better.

Reimplemented from chomp::homengin::engine.

Implemented in chomp::homengin::MM_CRengine, chomp::homengin::MM_ARengine, and chomp::homengin::MM_ASLTengine.

The documentation for this class was generated from the following file:

capd/homengin/engines.h
