This class defines a generic coordinator task object for the multi-work distributed computations framework. More...

#include <mwcoord.h>

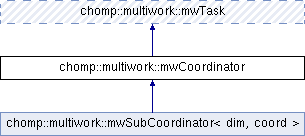

Inheritance diagram for chomp::multiwork::mwCoordinator:

Public Member Functions
	mwCoordinator ()
	The default constructor. More...

virtual	~mwCoordinator ()
	The virtual destructor. More...

void	KeepWorkers (bool keep=true)
	Makes workers keep running after the coordinator's completion. More...

int	SaveWorkers (const char *filename)
	Saves addresses of workers to the given file in the form of address:port. More...

void	Init (mwData &data)
	Defines a portion of initialization data which will be sent to every newly connected worker. More...

int	Coordinate (mwWorker *w=NULL)
	Run the coordinator until all the work has been completed. More...

Public Member Functions inherited from chomp::multiwork::mwTask
	mwTask ()
	The default constructor. More...

virtual	~mwTask ()
	The destructor. More...

void	Port (int number)
	Sets the port number for the communication or 0 to use none. More...

int	Port () const
	Returns the current port number. More...

void	ControlNumber (unsigned int number)
	Sets the control number for identification. More...

unsigned int	ControlNumber () const
	Returns the currently set identification control number. More...

void	TimeOut (int seconds)
	Sets the network connection time-out interval in seconds. More...

int	TimeOut () const
	Returns the currently set network connection time-out interval. More...

int	LogFile (const char *filename)
	Begins logging detailed communication debug information to the given file. More...

void	LogFile (const mwTask &other)
	Uses another task's log file to log this task's information. More...

void	LogClose ()
	Closes the log file and adds a line with the time information unless this log file was borrowed from another task. More...

int	Add (const char *name, int port=-1)
	Adds an address to the list of computers to connect to at the beginning of working or coordinating. More...

int	Load (const char *filename)
	Loads computer addresses from the given file. More...

int	QuitWorkers ()
	Quits all the workers whose addresses were added with the 'Add' and 'Load' functions. More...

Private Member Functions
virtual int	Prepare (mwData &data)
	Prepares a piece of data to be sent to a worker. More...

virtual int	Accept (mwData &data)
	Accepts a result received from a worker. More...

virtual int	Reject (mwData &data)
	Acknowledges data that was rejected by a worker. More...

int	RunLoop (bool no_more_data)
	Runs the main communication loop: Sends the data to workers and receives the results of their computations. More...

int	RunLoopLocally ()
	Runs the main communication loop using the local worker. More...

void	ConnectWorkers ()
	Connects to all workers in the list. More...

void	BeginListening ()
	Begins listening at the given port. More...

void	DisconnectAll ()
	Disconnects all the workers (normally called in the destructor). More...

int	SendMessageC (int fd, unsigned int code, const mwData &x) const
	Sends a message with data to the given socket as a coordinator. More...

int	RecvMessageC (int fd, unsigned int &code, mwData &x) const
	Receives a message with data from the socket of a worker. More...

Static Private Member Functions
static void	mwTableDel (int *tab, int len, int pos)
	A helper function for deleting a table entry and shifting the remainder of the table backwards. More...

static void	mwTableDel (mwData *tab, int len, int pos)
	A helper function for deleting a table entry and shifting the remainder of the table backwards using the method "Take" of the mwData class. More...

Private Attributes
bool	singleWork
	Should data be processed locally only? More...

mwWorker *	localWorker
	The address of a local worker or 0 if none is available. More...

bool	keepWorkers
	Should the workers be kept running after coordinator is done? More...

mwData	initData
	The initialization data that has to be sent to workers. More...

int	nWaiting
	The number of workers waiting for their data. More...

mwWorkerData	xWaiting [mwMAXWORK]
	The workers waiting for their tasks. More...

int	nWorking
	The number of workers processing their data. More...

mwWorkerData	xWorking [mwMAXWORK]
	The workers processing their data. More...

int	nToDo
	The number of data pieces to be sent to working tasks. More...

mwData	xToDo [mwMAXWORK]
	The data pieces waiting to be sent to working tasks. More...

int	nRejected
	The number of recently rejected pieces of data. More...

mwData	xRejected [mwMAXWORK]
	The recently rejected pieces of data. More...

int	nDone
	The number of recently finished pieces of data. More...

mwData	xDone [mwMAXWORK]
	The recently finished pieces of data. More...

int	listensocket
	The socket number at which new workers are listened to. More...

Additional Inherited Members
Static Protected Member Functions inherited from chomp::multiwork::mwTask
static int	SendMessage (int fd, unsigned int ctrl, unsigned int code, const mwData &x)
	Sends a message with data to the given socket. More...

static int	RecvMessage (int fd, unsigned int &ctrl, unsigned int &code, mwData &x)
	Receives a message with data from the given socket. More...

Protected Attributes inherited from chomp::multiwork::mwTask
std::ofstream *	logFile
	The debug log file stream. More...

std::vector< std::string >	computers
	A list of workers or coordinators to connect to at start-up. More...

std::vector< int >	ports
	A list of port numbers of workers to connect to at start-up. More...

Detailed Description

This class defines a generic coordinator task object for the multi-work distributed computations framework.

Each coordinator class defined by the user must inherit from this class.

Definition at line 126 of file mwcoord.h.

Constructor & Destructor Documentation

◆ mwCoordinator()

chomp::multiwork::mwCoordinator::mwCoordinator ( )

inline

The default constructor.

Definition at line 288 of file mwcoord.h.

                                    :
#if mwNETWORK
        singleWork (false),
#else
        singleWork (true),
#endif
        localWorker (0),
        keepWorkers (false),
        nWaiting (0),
        nWorking (0),
        nToDo (0),
        nRejected (0),
        nDone (0),
        listensocket (-1)
{
        return;
} /* mwCoordinator::mwCoordinator */

◆ ~mwCoordinator()

chomp::multiwork::mwCoordinator::~mwCoordinator ( )

inlinevirtual

The virtual destructor.

Definition at line 342 of file mwcoord.h.

{
        // disconnect all the workers
        DisconnectAll ();

        return;
} /* mwCoordinator::~mwCoordinator */

References DisconnectAll().

Member Function Documentation

◆ Accept()

int chomp::multiwork::mwCoordinator::Accept ( mwData & data )

inlineprivatevirtual

Accepts a result received from a worker.

Should return mwOk on success, mwError to stop the computations. Please, overload this function in the class you derive from mwCoordinator.

Reimplemented in chomp::multiwork::mwSubCoordinator< dim, coord >.

Definition at line 452 of file mwcoord.h.

{
        return mwOk;
} /* mwCoordinator::Accept */

References chomp::multiwork::mwOk.

Referenced by Coordinate().

◆ BeginListening()

void chomp::multiwork::mwCoordinator::BeginListening ( )

inlineprivate

Begins listening at the given port.

Definition at line 603 of file mwcoord.h.

{
        // if there is no valid port number then cancel this operation
        if (this -> Port () <= 0)
                return;

        // open a listening socket at the given port
        listensocket = mwListen (this -> Port (), 15);

        // add a message to the log file whether it was successful or not
        if (logFile)
        {
                if (listensocket < 0)
                        *logFile << "Listening attempt at port " <<
                                this -> Port () << " failed." << std::endl;
                else
                        *logFile << "Waiting for workers at port " <<
                                this -> Port () << "." << std::endl;
        }

        return;
} /* mwCoordinator::BeginListening */

References listensocket, chomp::multiwork::mwTask::logFile, chomp::multiwork::mwListen(), and chomp::multiwork::mwTask::Port().

Referenced by Coordinate().

◆ ConnectWorkers()

void chomp::multiwork::mwCoordinator::ConnectWorkers ( )

inlineprivate

Connects to all workers in the list.

Definition at line 554 of file mwcoord.h.

{
        int nComputers = computers. size ();
        for (int i = 0; (nWaiting < mwMAXWORK - 1) && (i < nComputers); ++ i)
        {
                // determine the computer name and port number
                const std::string &name = computers [i];
                int port = ports [i];

                // open the connection
                int fd = mwConnect (name. c_str (), port);

                // if the connection attempt was successful, add this worker
                if (fd >= 0)
                {
                        if (logFile)
                                *logFile << "Connected to " << name << ":" <<
                                        port << "." << std::endl;
                        mwWorkerData &w = xWaiting [nWaiting];
                        w. fd = fd;
                        w. name = name;
                        w. port = port;
                        ++ nWaiting;

                        // prepare the initialization code
                        int code = mwInitMsg |
                                (keepWorkers ? mwKeepMsg : mwDontKeepMsg);

                        // send the initialization data to the worker
                        int initResult = SendMessageC (w. fd, code,
                                initData);
                        if (initResult != mwOk)
                        {
                                if (logFile)
                                        *logFile << "Error while sending "
                                                "the initialization data." <<
                                                std::endl;
                                -- nWaiting;
                        }
                }

                // if unable to connect, make only a note in the log
                else if (logFile)
                        *logFile << "Connection attempt to " << name <<
                                ":" << port << " failed." << std::endl;
        }
        return;
} /* mwCoordinator::ConnectWorkers */

References chomp::multiwork::mwTask::computers, initData, keepWorkers, chomp::multiwork::mwTask::logFile, chomp::multiwork::mwConnect(), chomp::multiwork::mwDontKeepMsg, chomp::multiwork::mwInitMsg, chomp::multiwork::mwKeepMsg, mwMAXWORK, chomp::multiwork::mwOk, nWaiting, chomp::multiwork::mwTask::ports, SendMessageC(), and xWaiting.

Referenced by Coordinate().

◆ Coordinate()

int chomp::multiwork::mwCoordinator::Coordinate ( mwWorker * w = NULL )

inline

Run the coordinator until all the work has been completed.

If a worker object is supplied, the work will be done locally unless any remote worker is connected to the coordinator. Return mwOk or mwError.

Definition at line 1061 of file mwcoord.h.

{
        // remember the local worker's address
        localWorker = w;

        // initialize the local worker if any
        if (localWorker)
                localWorker -> Initialize (initData);

        if (logFile)
        {
                *logFile << "Running as a COORDINATOR." << std::endl;

                // indicate what kind of network connection is in use
                #if !mwNETWORK
                *logFile << "There is no network in use." << std::endl;
                #elif mwWXWIN
                *logFile << "Using the sockets interface "
                        "provided by wxWindows." << std::endl;
                #else
                *logFile << "Using the standard sockets "
                        "for network connections." << std::endl;
                #endif

                // say if running in the single-work mode only
                if (singleWork && localWorker)
                        *logFile << "Running in the single-work mode." <<
                                std::endl;
        }

        // connect to workers on the list and begin listening if necessary
        if (!singleWork)
        {
                this -> ConnectWorkers ();
                this -> BeginListening ();
        }

        // if not listening and there are no workers then try switching
        // to the single-work mode, unless there is no local worker
        if (!singleWork && (listensocket < 0) && !nWaiting)
        {
                // switch to the single-work mode if allowed to
                if (localWorker)
                {
                        singleWork = true;
                        if (logFile)
                                *logFile << "No remote workers. Switching "
                                        "to the single-work mode." <<
                                        std::endl;
                }

                // if data cannot be processed locally, report a failure
                else
                {
                        if (logFile)
                                *logFile << "Failure: No workers." <<
                                        std::endl;
                        return mwError;
                }
        }

        // is there no more data to be sent?
        bool no_more_data = false;

        while (1)
        {
                // run the communications loop
                int loopresult = singleWork ? this -> RunLoopLocally () :
                        this -> RunLoop (no_more_data);

                // stop if the coordinator failed badly
                if (loopresult == mwError)
                        return mwError;

                // if some data was rejected, process all this data
                while (nRejected > 0)
                {
                        // run the user's procedure to acquire rejected data
                        -- nRejected;
                        xRejected [nRejected]. Rewind ();
                        int result = this -> Reject (xRejected [nRejected]);

                        // interrupt if the user says that an error occurred
                        if (result != mwOk)
                                return mwError;

                        // reset the data acquired by the user
                        xRejected [nRejected]. Reset ();
                        no_more_data = false;
                }

                // if some new data arrived, process all this data
                while (nDone > 0)
                {
                        // call the user's procedure to accept the data piece
                        -- nDone;
                        xDone [nDone]. Rewind ();
                        int result = this -> Accept (xDone [nDone]);

                        // interrupt if the user says that an error occurred
                        if (result != mwOk)
                                return mwError;

                        // reset the data acquired by the user
                        xDone [nDone]. Reset ();
                        no_more_data = false;
                }

                // determine whether a new data item must be prepared:
                // if there are workers waiting and there is no data then YES
                bool hungry = (nWaiting > 0) && !nToDo;
                // if there is no worker and no data then YES
                if ((localWorker || (listensocket >= 0)) &&
                        !nWorking && !nWaiting && !nToDo)
                {
                        hungry = true;
                }
                // if no more data is needed then definitely NO
                if (no_more_data)
                        hungry = false;

                // prepare a new data item if necessary
                if (hungry)
                {
                        // run the user's procedure for preparing data
                        int result = this -> Prepare (xToDo [nToDo]);

                        // break if the user says that an error occurred
                        if (result == mwError)
                                return mwError;

                        // make a note if there is no more data
                        else if (result == mwNoData)
                                no_more_data = true;

                        // add the data piece to the work queue otherwise
                        else
                                ++ nToDo;
                }

                // stop if the tasks are completed and there is no more data
                if (no_more_data && !nWorking && !nToDo)
                        return mwOk;
        }
} /* mwCoordinator::Coordinate */

References Accept(), BeginListening(), ConnectWorkers(), initData, listensocket, localWorker, chomp::multiwork::mwTask::logFile, chomp::multiwork::mwError, chomp::multiwork::mwNoData, chomp::multiwork::mwOk, nDone, nRejected, nToDo, nWaiting, nWorking, Prepare(), Reject(), RunLoop(), RunLoopLocally(), singleWork, xDone, xRejected, and xToDo.

◆ DisconnectAll()

void chomp::multiwork::mwCoordinator::DisconnectAll ( )

inlineprivate

Disconnects all the workers (normally called in the destructor).

Definition at line 306 of file mwcoord.h.

{
        // release all the workers if they are still connected
        for (int i = 0; i < nWaiting + nWorking; ++ i)
        {
                // determine the particular worker
                mwWorkerData &w = (i < nWaiting) ? xWaiting [i] :
                        xWorking [i - nWaiting];

                // if this worker is already disconnected, take the next one
                if (w. fd < 0)
                        continue;

                // prepare the code to send to the worker
                unsigned int code = mwByeMsg;
                code |= keepWorkers ? mwKeepMsg : mwDontKeepMsg;

                // send the 'Bye!' message to the worker
                mwData empty;
                SendMessageC (w. fd, code, empty);

                // disconnect the worker
                mwDisconnect (w. fd);
                w. fd = -1;

                // make a note of what happened in the log file
                if (logFile)
                        *logFile << "Worker " << i << " (" << w. name <<
                                ":" << w. port << ") disconnected and " <<
                                (keepWorkers ? "waiting." : "exited.") <<
                                std::endl;
        }

        return;
} /* mwCoordinator::Disconnect */

References keepWorkers, chomp::multiwork::mwTask::logFile, chomp::multiwork::mwByeMsg, chomp::multiwork::mwDisconnect(), chomp::multiwork::mwDontKeepMsg, chomp::multiwork::mwKeepMsg, nWaiting, nWorking, SendMessageC(), xWaiting, and xWorking.

Referenced by ~mwCoordinator().

◆ Init()

void chomp::multiwork::mwCoordinator::Init ( mwData & data )

inline

Defines a portion of initialization data which will be sent to every newly connected worker.

The argument variable is reset and the data is moved to the internal buffer.

Definition at line 464 of file mwcoord.h.

{
        initData. Take (data);
        return;
} /* mwCoordinator::Init */

References initData.

◆ KeepWorkers()

void chomp::multiwork::mwCoordinator::KeepWorkers ( bool keep = true )

inline

Makes workers keep running after the coordinator's completion.

Definition at line 350 of file mwcoord.h.

{
        keepWorkers = keep;
        return;
} /* mwCoordinator::KeepWorkers */

References keepWorkers.

◆ mwTableDel() [1/2]

void chomp::multiwork::mwCoordinator::mwTableDel	(	int *	tab,
		int	len,
		int	pos
	)

inlinestaticprivate

A helper function for deleting a table entry and shifting the remainder of the table backwards.

Definition at line 1209 of file mwcoord.h.

{
        for (int i = pos + 1; i < len; ++ i)
                tab [i - 1] = tab [i];
        return;
} /* mwTableDel */

◆ mwTableDel() [2/2]

void chomp::multiwork::mwCoordinator::mwTableDel	(	mwData *	tab,
		int	len,
		int	pos
	)

inlinestaticprivate

A helper function for deleting a table entry and shifting the remainder of the table backwards using the method "Take" of the mwData class.

Definition at line 1218 of file mwcoord.h.

{
        for (int i = pos + 1; i < len; ++ i)
                tab [i - 1]. Take (tab [i]);
        return;
} /* mwTableDel */

◆ Prepare()

int chomp::multiwork::mwCoordinator::Prepare ( mwData & data )

inlineprivatevirtual

Prepares a piece of data to be sent to a worker.

Should return mwOk on success, mwNothing if there is no data to send based on the computations completed so far, mwError to cancel the computations. Please, overload this function in the class you derive from mwCoordinator.

Reimplemented in chomp::multiwork::mwSubCoordinator< dim, coord >.

Definition at line 447 of file mwcoord.h.

{
        return mwNoData;
} /* mwCoordinator::Prepare */

References chomp::multiwork::mwNoData.

Referenced by Coordinate().

◆ RecvMessageC()

int chomp::multiwork::mwCoordinator::RecvMessageC	(	int	fd,
		unsigned int &	code,
		mwData &	x
	)		const

inlineprivate

Receives a message with data from the socket of a worker.

Returns mwOk on success or mwError in the case of failure.

Definition at line 483 of file mwcoord.h.

{
        // receive the message
        unsigned int ctrl = 0;
        int result = this -> RecvMessage (fd, ctrl, code, x);

        // if there was an error then return its code
        if (result != mwOk)
                return result;

        // if the control number is correct then finish successfully
        if (ctrl == ~(this -> ControlNumber ()))
                return mwOk;

        // if the control number is wrong then return an error code
        if (logFile)
                *logFile << "Wrong control code received "
                        "from the worker: " << ~ctrl << "." << std::endl;
        return mwError;
} /* mwCoordinator::SendMessageC */

References chomp::multiwork::mwTask::ControlNumber(), chomp::multiwork::mwTask::logFile, chomp::multiwork::mwError, chomp::multiwork::mwOk, and chomp::multiwork::mwTask::RecvMessage().

Referenced by RunLoop().

◆ Reject()

int chomp::multiwork::mwCoordinator::Reject ( mwData & data )

inlineprivatevirtual

Acknowledges data that was rejected by a worker.

Should return mwOk if this is fine, or mwError to cancel the computations. Please, overload this function in the class you derive from mwCoordinator unless the default behavior is fine (returning mwOk and ignoring the data).

Reimplemented in chomp::multiwork::mwSubCoordinator< dim, coord >.

Definition at line 457 of file mwcoord.h.

{
        return mwOk;
} /* mwCoordinator::Reject */

References chomp::multiwork::mwOk.

Referenced by Coordinate().

◆ RunLoop()

int chomp::multiwork::mwCoordinator::RunLoop ( bool no_more_data )

inlineprivate

Runs the main communication loop: Sends the data to workers and receives the results of their computations.

If there is no_more_data then waits for the running tasks until they finalize and some data becomes available. Otherwise, returns also when a new worker is ready to acquire a portion of data for processing. Returns mwOk or mwError.

Definition at line 626 of file mwcoord.h.

{
        if (false && logFile)
                *logFile << "\nDebug0: " << nWaiting << " waiting, " <<
                        nWorking << " working, " << nToDo <<
                        " data pieces." << std::endl;

        // if not listening and there are no workers then try switching
        // to the single-work mode, unless there is no local worker
        if ((listensocket < 0) && !nWorking && !nWaiting)
        {
                // switch to the single-work mode if allowed to
                if (localWorker)
                {
                        singleWork = true;
                        if (logFile)
                                *logFile << "All workers disconnected. "
                                        "Switching to the single-work "
                                        "mode." << std::endl;
                        return mwOk;
                }

                // if data cannot be processed locally, report a failure
                else
                {
                        if (logFile)
                                *logFile << "Failure: All workers "
                                        "disconnected. The work cannot be "
                                        "continued." << std::endl;
                        return mwError;
                }
        }

        // TO DO: If there is no more data (options & mwNoMoreData)
        // and some workers are idle, and some others are working
        // for a long time, send their data also to a few idle
        // workers... This requires some A.I., of course. ;)

        // the i/o flags ans sockets of the workers + one for 'listensocket'
        int ioflags [mwMAXWORK];
        int sockets [mwMAXWORK];
        int nWorkers = nToDo ? (nWorking + nWaiting) : nWorking;

        // prepare flags for the working and waiting workers
        for (int i = 0; i < nWorking; ++ i)
        {
                ioflags [i] = mwCanRead;
                sockets [i] = xWorking [i]. fd;
        }
        if (nWorkers > nWorking)
        {
                for (int i = 0; i < nWaiting; ++ i)
                {
                        ioflags [nWorking + i] = mwCanWrite;
                        sockets [nWorking + i] = xWaiting [i]. fd;
                }
        }

        // prepare the listen socket flag
        bool listening = false;
        int listenflag = nWorkers;
        if ((listensocket >= 0) && (nWorking + nWaiting < mwMAXWORK - 1))
        {
                ioflags [listenflag] = mwCanRead;
                listening = true;
        }
        else
                ioflags [listenflag] = mwNone;

        // determine whether it is necessary to wait or not
        int timelimit = this -> TimeOut ();
        if (localWorker && !nWorking && !nWaiting)
                timelimit = 0;
        if (listening && !no_more_data && !nToDo && !nWorking && !nWaiting)
                timelimit = 0;
        if (!no_more_data && !nToDo && nWaiting && (nWorking < mwMAXWORK))
                timelimit = 0;
//      if (no_more_data && !nToDo && !nWorking)
//              timelimit = 0;

        // report the select's parameters to the log file
        if (logFile)
        {
                *logFile << ">>> Select, t = " << timelimit << ", flags =";
                for (int i = 0; i <= nWorkers; ++ i)
                        *logFile << " " << ioflags [i];
                *logFile << "." << std::endl;
        }

        // wait until data can be received from or sent to any socket
        int result = mwSelect (sockets, nWorkers,
                listening ? listensocket : -1, ioflags, timelimit);

        // report the returned parametrs to the log file
        if (logFile)
        {
                *logFile << ">>> Returned flags =";
                for (int i = 0; i <= nWorkers; ++ i)
                        *logFile << " " << ioflags [i];
                *logFile << "." << std::endl;
        }

        // in case of select's failure, exit the loop with a failure message
        if (result == mwError)
        {
                if (logFile)
                        *logFile << "Error: The 'select' function failed." <<
                                std::endl;
                return mwError;
        }

        // report a time-out if necessary
        if ((timelimit > 0) && (result == mwTimeOut))
        {
                if (logFile)
                        *logFile << "Time-out occurred at 'select'." <<
                                std::endl;
        }

        // receive data from all the workers who are ready
        for (int i = 0; (i < nWorking) && (nDone < mwMAXWORK) &&
                (nRejected < mwMAXWORK) && (nToDo < mwMAXWORK); ++ i)
        {
                // if this worker is not ready, yet, then skip it
                if (!(ioflags [i] & mwCanRead))
                        continue;

                // receive the entire data chunk from the worker
                unsigned int code = 0;
                int result = RecvMessageC (sockets [i], code, xDone [nDone]);

                // remember which worker this is
                mwWorkerData &w = xWorking [i];

                // reject the worker in case of error
                if (result < 0)
                {
                        // log the details of what happened
                        if (logFile)
                        {
                                *logFile << "Worker " << i;
                                if (!w. name. empty ())
                                        *logFile << " (" << w. name << ")";
                                *logFile << " disconnected: ";
                                if (result == mwLost)
                                        *logFile << "Connection lost.";
                                else
                                        *logFile << "An error occurred.";
                                *logFile << std::endl;
                        }

                        // disconnect the worker
                        mwDisconnect (sockets [i]);

                        // move the worker's data back to the "to-do" list
                        xToDo [nToDo]. Take (w. data);
                        ++ nToDo;

                        // make a note of this in the worker's data
                        w. fd = -1;
                        w. status = -1;
                }

                // if transmitting the port number only, take it
                else if (code & mwPortMsg)
                {
                        // retrieve the port number
                        xDone [nDone] >> w. port;

                        // report this fact to the log file
                        if (logFile)
                                *logFile << "Port number " << w. port <<
                                        " received from worker " << i <<
                                        "." << std::endl;
                }

                // if the data was rejected, move it to 'xRejected'
                else if (code & mwRejectedMsg)
                {
                        // report what happened
                        if (logFile)
                                *logFile << "Data was rejected by worker " <<
                                        i << "." << std::endl;

                        // move the data to the rejected table
                        xRejected [nRejected]. Take (w. data);
                        ++ nRejected;

                        // indicate the status change of this worker
                        w. status = 1;
                }

                // if the data was Ok, the result is in 'xDone'
                else
                {
                        // report this to the log file
                        if (logFile)
                                *logFile << "Processed data received from "
                                        "worker " << i << "." << std::endl;

                        // accept this piece of data
                        ++ nDone;

                        // indicate the status change of this worker
                        w. status = 1;
                }
        }

        // send data to those workers who are ready
        for (int i = 0; (i < nWaiting) && nToDo; ++ i)
        {
                // remember the worker and its offset
                mwWorkerData &w = xWaiting [i];
                int offset = nWorking + i;

                // if this worker is not ready to get data then skip it
                if (!(ioflags [offset] & mwCanWrite))
                        continue;

                // prepare a message code to send
                unsigned int code = mwStdMsg;

                // send a data chunk for processing
                int result = SendMessageC (sockets [offset], code,
                        xToDo [nToDo - 1]);

                // if the data was sent successfully
                if (result == mwOk)
                {
                        // take the data chunk to the worker
                        -- nToDo;
                        w. data. Take (xToDo [nToDo]);

                        // indicate the status of the worker
                        w. status = 1;

                        // report this to the log file
                        if (logFile)
                                *logFile << "Data " << nToDo << " sent to "
                                        "worker " << i << "." << std::endl;
                }

                // if an error occurred, reject the worker
                else
                {
                        // report this situation to the log file
                        if (logFile)
                                *logFile << "Worker " << i << " disconnected"
                                        ": " << ((result == mwLost) ?
                                        "Connection lost." :
                                        "An error occurred.") << std::endl;

                        // disconnect the worker
                        mwDisconnect (sockets [offset]);

                        // modify the status of the worker accordingly
                        w. fd = -1;
                        w. status = -1;
                }
        }

        if (false && logFile)
        {
                *logFile << "Debug1: " << nWaiting << " waiting:";
                for (int i = 0; i < nWaiting; ++ i)
                        *logFile << " " << xWaiting [i]. status;
                *logFile << "; " << nWorking << " working:";
                for (int i = 0; i < nWorking; ++ i)
                        *logFile << " " << xWorking [i]. status;
                *logFile << std::endl;
        }

        // purge workers who have been disconnected and move workers
        // whose data has been acquired to the 'waiting' queue
        for (int i = 0; i < nWorking; ++ i)
        {
                // skip this worker if it is fine
                if (xWorking [i]. status == 0)
                        continue;

                // swap this worker with the last one if necessary
                if (i < nWorking - 1)
                        swap (xWorking [i], xWorking [nWorking - 1]);

                // move the worker to the waiting queue if necessary
                if (xWorking [nWorking - 1]. status > 0)
                {
                        xWorking [nWorking - 1]. status = 0;
                        swap (xWaiting [nWaiting], xWorking [nWorking - 1]);
                        ++ nWaiting;
                }

                // remove this worker from the working queue
                -- nWorking;

                // consider the same entry in the table again
                -- i;
        }

        // purge workers who have been disconnected and move workers
        // who received data to the 'working' queue
        for (int i = 0; i < nWaiting; ++ i)
        {
                // skip this worker if it is fine
                if (xWaiting [i]. status == 0)
                        continue;

                // swap this worker with the last one if necessary
                if (i < nWaiting - 1)
                        swap (xWaiting [i], xWaiting [nWaiting - 1]);

                // move the worker to the working queue if necessary
                if (xWaiting [nWaiting - 1]. status > 0)
                {
                        xWaiting [nWaiting - 1]. status = 0;
                        swap (xWorking [nWorking], xWaiting [nWaiting - 1]);
                        ++ nWorking;
                }

                // remove this worker from the waiting queue
                -- nWaiting;

                // consider the same entry in the table again
                -- i;
        }

        if (false && logFile)
                *logFile << "Debug2: " << nWaiting << " waiting, " <<
                        nWorking << " working, " << nToDo <<
                        " data pieces." << std::endl;

        // accept connections from new workers if any
        if (listening && (ioflags [listenflag] & mwCanRead) &&
                (nWaiting + nWorking < mwMAXWORK))
        {
                // accept the connection
                mwWorkerData &w = xWaiting [nWaiting];
                w. name = std::string ("");
                w. port = 0;
                w. status = 0;
                w. fd = mwAccept (listensocket, w. name);

                // if the new worker has been accepted successfully
                if (w. fd >= 0)
                {
                        // report the worker's acceptance
                        if (logFile)
                                *logFile << "A worker from '" << w. name <<
                                        "' accepted." << std::endl;

                        // add the worker to the waiting queue
                        ++ nWaiting;

                        // prepare the initialization code
                        int code = mwInitMsg |
                                (keepWorkers ? mwKeepMsg : mwDontKeepMsg);

                        // send the initialization data to the worker
                        int initResult = SendMessageC (w. fd, code,
                                initData);
                        if (initResult != mwOk)
                        {
                                if (logFile)
                                        *logFile << "Error while sending "
                                                "the initialization data." <<
                                                std::endl;
                                -- nWaiting;
                        }
                }

                // report the error to the log file if not successful
                else if (logFile)
                        *logFile << "Unsuccessful connection of a worker "
                                "from '" << w. name << "'." << std::endl;
        }

        if (false && logFile)
                *logFile << "Debug3: " << nWaiting << " waiting, " <<
                        nWorking << " working, " << nToDo <<
                        " data pieces." << std::endl;

        // ask for some data to process if none is waiting
        // or too much data acquired from workers is accumulated
        if (localWorker && !nWorking && !nWaiting &&
                !no_more_data && (result == mwTimeOut) && !nToDo)
        {
                if (logFile)
                        *logFile << "Asking for some data to be "
                                "processed locally." << std::endl;
                return mwOk;
        }

        // run the work locally as a last resort
        if (localWorker && !nWorking && !nWaiting && (result == mwTimeOut) &&
                nToDo && (nDone < mwMAXWORK) && (nRejected < mwMAXWORK))
        {
                // make a note in the log file of what is going on
                if (logFile)
                        *logFile << "Processing data locally." << std::endl;

                // process one piece of data
                -- nToDo;
                xToDo [nToDo]. Rewind ();
                int result = localWorker -> Process (xToDo [nToDo]);
                xToDo [nToDo]. Rewind ();

                if (result == mwReject)
                {
                        xRejected [nRejected]. Take (xToDo [nToDo]);
                        ++ nRejected;
                }
                else if (result == mwError)
                {
                        if (logFile)
                                *logFile << "Data processing failed." <<
                                        std::endl;
                        return mwError;
                }
                else
                {
                        xDone [nDone]. Take (xToDo [nToDo]);
                        ++ nDone;
                }
        }

        if (false && logFile)
                *logFile << "Debug4: " << nWaiting << " waiting, " <<
                        nWorking << " working, " << nToDo <<
                        " data pieces." << std::endl;

        return mwOk;
} /* mwCoordinator::RunLoop */

Referenced by Coordinate().

◆ RunLoopLocally()

int chomp::multiwork::mwCoordinator::RunLoopLocally ( )

inlineprivate

Runs the main communication loop using the local worker.

Returns mwOk or mwError.

Definition at line 507 of file mwcoord.h.

{
        if (!localWorker)
                return mwError;

        // indicate that some worker is continuously waiting for data
        if (!nWaiting)
                ++ nWaiting;

        // process the data
        while ((nDone < mwMAXWORK) && (nRejected < mwMAXWORK) && (nToDo > 0))
        {
                // process the data and replace it with the result
                -- nToDo;
                xToDo [nToDo]. Rewind ();
                int result = localWorker -> Process (xToDo [nToDo]);
                xToDo [nToDo]. Rewind ();

                // if the data caused an error then abort the loop
                if (result == mwError)
                {
                        if (logFile)
                                *logFile << "Data processing failed." <<
                                        std::endl;
                        return mwError;
                }

                // if the data was rejected
                // then move it to the right place
                else if (result == mwReject)
                {
                        xRejected [nRejected]. Take (xToDo [nToDo]);
                        ++ nRejected;
                }

                // if the data was accepted
                // then move it to the right place
                else
                {
                        xDone [nDone]. Take (xToDo [nToDo]);
                        ++ nDone;
                }
        }

        return mwOk;
} /* mwCoordinator::RunLoopLocally */

References localWorker, chomp::multiwork::mwTask::logFile, chomp::multiwork::mwError, mwMAXWORK, chomp::multiwork::mwOk, chomp::multiwork::mwReject, nDone, nRejected, nToDo, nWaiting, xDone, xRejected, and xToDo.

Referenced by Coordinate().

◆ SaveWorkers()

int chomp::multiwork::mwCoordinator::SaveWorkers ( const char * filename )

inline

Saves addresses of workers to the given file in the form of address:port.

Repeated combinations are saved once only.

Definition at line 356 of file mwcoord.h.

{
        // create a file for the list of workers
        // prepare to create a file to list the workers
        std::ofstream f;
        bool first = false;

        // go through all the connected workers
        int counter = 0;
        for (int i = 0; i < nWaiting + nWorking; ++ i)
        {
                // determine the particular worker
                mwWorkerData &w = (i < nWaiting) ? xWaiting [i] :
                        xWorking [i - nWaiting];

                // determine the host name
                const char *host = w. name. c_str ();

                // if no host name or port number is known, skip it
                if (!host || !*host || (w. port <= 0))
                        continue;

                // check if the same worker was already listed
                int j;
                for (j = 0; j < i; ++ j)
                {
                        // determine the other worker
                        mwWorkerData &v = (j < nWaiting) ? xWaiting [j] :
                                xWorking [j - nWaiting];

                        // determine the name of the other host
                        const char *host_j = v. name. c_str ();

                        // if no host name or port number is known, skip it
                        if (!host_j || !*host_j || (v. port <= 0))
                                continue;

                        // if the ports are different, skip the other worker
                        if (w. port != v. port)
                                continue;

                        // if the names are different, skip the other worker
                        if (std::strcmp (host, host_j))
                                continue;

                        // make a note that this is the same worker
                        j = i + 1;
                        break;
                }
                if (j > i)
                        continue;

                // create the file if this is the first time to write data
                if (first)
                {
                        f. open (filename, std::ios::out | std::ios::trunc);
                        if (!f)
                                return mwError;
                        f << "; A list of currently running workers:\n";
                        first = false;
                }

                // write the address
                f << host << ":" << w. port << "\n";
                ++ counter;
        }

        // exit if no workers have been listed
        if (!counter)
                return mwOk;

        // add a summary if any workers have been listed
        f << "; A total of " << counter << " workers";
        if (counter != nWaiting + nWorking)
                f << " out of " << (nWaiting + nWorking);
        f << " saved.\n";

        if (!keepWorkers)
                f << "; The workers will exit upon disconnection.\n";
        else
                f << "; The workers will remain running "
                        "after disconnection.\n";
        f. close ();
        if (!f)
                return mwError;
        else
                return mwOk;
} /* mwCoordinator::SaveWorkers */

References keepWorkers, chomp::multiwork::mwError, chomp::multiwork::mwOk, nWaiting, nWorking, xWaiting, and xWorking.

◆ SendMessageC()

int chomp::multiwork::mwCoordinator::SendMessageC	(	int	fd,
		unsigned int	code,
		const mwData &	x
	)		const

inlineprivate

Sends a message with data to the given socket as a coordinator.

Returns mwOk on success and mwError in the case of failure.

Definition at line 473 of file mwcoord.h.

{
        // prepare the control number to send
        unsigned int ctrl = this -> ControlNumber ();

        // send the message with the control number and the message code
        return this -> SendMessage (fd, ctrl, code, x);
} /* mwCoordinator::SendMessageC */

References chomp::multiwork::mwTask::ControlNumber(), and chomp::multiwork::mwTask::SendMessage().

Referenced by ConnectWorkers(), DisconnectAll(), and RunLoop().

Member Data Documentation

◆ initData

mwData chomp::multiwork::mwCoordinator::initData

private

The initialization data that has to be sent to workers.

Definition at line 224 of file mwcoord.h.

Referenced by ConnectWorkers(), Coordinate(), Init(), and RunLoop().

◆ keepWorkers

bool chomp::multiwork::mwCoordinator::keepWorkers

private

Should the workers be kept running after coordinator is done?

Definition at line 219 of file mwcoord.h.

Referenced by ConnectWorkers(), DisconnectAll(), KeepWorkers(), RunLoop(), and SaveWorkers().

◆ listensocket

int chomp::multiwork::mwCoordinator::listensocket

private

The socket number at which new workers are listened to.

Definition at line 261 of file mwcoord.h.

Referenced by BeginListening(), Coordinate(), and RunLoop().

◆ localWorker

mwWorker* chomp::multiwork::mwCoordinator::localWorker

private

The address of a local worker or 0 if none is available.

Definition at line 216 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ nDone

int chomp::multiwork::mwCoordinator::nDone

private

The number of recently finished pieces of data.

Definition at line 253 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ nRejected

int chomp::multiwork::mwCoordinator::nRejected

private

The number of recently rejected pieces of data.

Definition at line 247 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ nToDo

int chomp::multiwork::mwCoordinator::nToDo

private

The number of data pieces to be sent to working tasks.

Definition at line 241 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ nWaiting

int chomp::multiwork::mwCoordinator::nWaiting

private

The number of workers waiting for their data.

Definition at line 229 of file mwcoord.h.

Referenced by ConnectWorkers(), Coordinate(), DisconnectAll(), RunLoop(), RunLoopLocally(), and SaveWorkers().

◆ nWorking

int chomp::multiwork::mwCoordinator::nWorking

private

The number of workers processing their data.

Definition at line 235 of file mwcoord.h.

Referenced by Coordinate(), DisconnectAll(), RunLoop(), and SaveWorkers().

◆ singleWork

bool chomp::multiwork::mwCoordinator::singleWork

private

Should data be processed locally only?

Definition at line 213 of file mwcoord.h.

Referenced by Coordinate(), and RunLoop().

◆ xDone

mwData chomp::multiwork::mwCoordinator::xDone[mwMAXWORK]

private

The recently finished pieces of data.

Definition at line 256 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ xRejected

mwData chomp::multiwork::mwCoordinator::xRejected[mwMAXWORK]

private

The recently rejected pieces of data.

Definition at line 250 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ xToDo

mwData chomp::multiwork::mwCoordinator::xToDo[mwMAXWORK]

private

The data pieces waiting to be sent to working tasks.

Definition at line 244 of file mwcoord.h.

Referenced by Coordinate(), RunLoop(), and RunLoopLocally().

◆ xWaiting

mwWorkerData chomp::multiwork::mwCoordinator::xWaiting[mwMAXWORK]

private

The workers waiting for their tasks.

Definition at line 232 of file mwcoord.h.

Referenced by ConnectWorkers(), DisconnectAll(), RunLoop(), and SaveWorkers().

◆ xWorking

mwWorkerData chomp::multiwork::mwCoordinator::xWorking[mwMAXWORK]

private

The workers processing their data.

Definition at line 238 of file mwcoord.h.

Referenced by DisconnectAll(), RunLoop(), and SaveWorkers().

The documentation for this class was generated from the following file:

chomp/multiwork/mwcoord.h

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ mwCoordinator()

◆ ~mwCoordinator()

Member Function Documentation

◆ Accept()

◆ BeginListening()

◆ ConnectWorkers()

◆ Coordinate()

◆ DisconnectAll()

◆ Init()

◆ KeepWorkers()

◆ mwTableDel() [1/2]

◆ mwTableDel() [2/2]

◆ Prepare()

◆ RecvMessageC()

◆ Reject()

◆ RunLoop()

◆ RunLoopLocally()

◆ SaveWorkers()

◆ SendMessageC()

Member Data Documentation

◆ initData

◆ keepWorkers

◆ listensocket

◆ localWorker

◆ nDone

◆ nRejected

◆ nToDo

◆ nWaiting

◆ nWorking

◆ singleWork

◆ xDone

◆ xRejected

◆ xToDo

◆ xWaiting

◆ xWorking
