This is an abstract class which defines the interface to other classes that describe maps for the use for the program "cmgraphs.cpp". More...

#include <maptype.h>

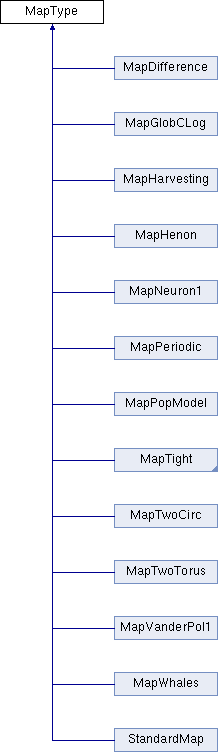

Inheritance diagram for MapType:

Public Member Functions
	MapType ()
	The default constructor of an object which describes a map. More...

virtual	~MapType ()
	The destructor of an object which describe a map. More...

virtual void	setParam (const double left, const double right, int n)
	Sets the parameters to the given intervals defined by their left and right coordinates. More...

const double &	getLeftParam (int n) const
	Returns the left value of the given parameter. More...

const double &	getRightParam (int n) const
	Returns the right value of the given parameter. More...

virtual void	compute (const double xleft, const double xright, double yleft, double yright, int dim, const spcCoord *coord, int subdiv) const =0
	Computes the image of a box whose left and right coordinates are given. More...

void	operator() (const IntervalType x, IntervalType y, int dim, const spcCoord *coord, int subdiv) const
	An interface to the function 'compute' based on intervals. More...

bool	adjust (bool successful, int subdiv)
	Adjusts parameters if necessary after a successful computation or after an unsuccessful computation of the graph of the map at a specific subdivision level. More...

std::string	getOptInfo () const
	Gets a single line of information on optimization of the computation of the map, so that it can be used by maps created for the same and nearby parameter values. More...

void	useOptInfo (const std::string &info)
	Uses a prevously saved line of information on optimization of the computation of the map for the same or nearby parameter values. More...

void	saveInternals (chomp::multiwork::mwData &data) const
	Saves the internal parameters and other data of the map to the mwData structure. More...

void	loadInternals (chomp::multiwork::mwData &data)
	Retrieves the internal paramters and other data of the map from the mwData structure. More...

virtual double	getTimeStep (int subdiv) const
	Returns the time step, which is 1 for a map, or the time t of integration in case of a time-t map of a flow. More...

virtual std::string	name () const
	Returns the name of the map. More...

Private Member Functions
	MapType (const MapType &)
	The copy constructor should not be used. More...

MapType &	operator= (const MapType &)
	The assignment operator should not be used. More...

Private Attributes
double *	leftParam
	The left ends of the parameter intervals of the map. More...

double *	rightParam
	The right ends of the parameter intervals of the map. More...

int	nParam
	The number of parameters defined. More...

Detailed Description

This is an abstract class which defines the interface to other classes that describe maps for the use for the program "cmgraphs.cpp".

Definition at line 58 of file maptype.h.

Constructor & Destructor Documentation

◆ MapType() [1/2]

MapType::MapType ( )

inline

The default constructor of an object which describes a map.

Definition at line 148 of file maptype.h.

◆ ~MapType()

MapType::~MapType ( )

inlinevirtual

The destructor of an object which describe a map.

Definition at line 153 of file maptype.h.

References leftParam, and rightParam.

◆ MapType() [2/2]

MapType::MapType ( const MapType & )

inlineprivate

The copy constructor should not be used.

Definition at line 162 of file maptype.h.

Member Function Documentation

◆ adjust()

bool MapType::adjust	(	bool	successful,
		int	subdiv
	)

inline

Adjusts parameters if necessary after a successful computation or after an unsuccessful computation of the graph of the map at a specific subdivision level.

Returns true iff it is necessary to repeat the computation.

Definition at line 230 of file maptype.h.

◆ compute()

virtual void MapType::compute	(	const double *	xleft,
		const double *	xright,
		double *	yleft,
		double *	yright,
		int	dim,
		const spcCoord *	coord,
		int	subdiv
	)		const

pure virtual

Computes the image of a box whose left and right coordinates are given.

Fills in the images with the left and right coordinates of the image box. Whenever this information is relevant, the integer coordinates of the box are provided, as well as the subdivision level of the full phase space box; otherwise the pointer to the coordinates is set to 0, and the subdivision level is undefined.

Implemented in MapDifference, MapGlobCLog, MapHarvesting, MapHenon, MapNeuron1, MapPeriodic, MapPopModel, StandardMap, MapTwoCirc, MapTwoTorus, MapVanderPol1, MapWhales, MapTight, and MapOdeApprox.

Referenced by operator()().

◆ getLeftParam()

const double & MapType::getLeftParam ( int n ) const

inline

Returns the left value of the given parameter.

Definition at line 196 of file maptype.h.

References leftParam, and nParam.

Referenced by MapDifference::compute(), MapGlobCLog::compute(), MapHarvesting::compute(), MapHenon::compute(), MapNeuron1::compute(), MapPopModel::compute(), StandardMap::compute(), MapTwoCirc::compute(), MapTwoTorus::compute(), MapVanderPol1::compute(), MapWhales::compute(), MapDuffingApprox::vectorField(), MapLorenzApprox::vectorField(), MapRoesslerApprox::vectorField(), and MapVanderPolApprox::vectorField().

◆ getOptInfo()

std::string MapType::getOptInfo ( ) const

inline

Gets a single line of information on optimization of the computation of the map, so that it can be used by maps created for the same and nearby parameter values.

Definition at line 235 of file maptype.h.

◆ getRightParam()

const double & MapType::getRightParam ( int n ) const

inline

Returns the right value of the given parameter.

Definition at line 203 of file maptype.h.

References nParam, and rightParam.

Referenced by MapDifference::compute(), MapGlobCLog::compute(), MapHarvesting::compute(), MapHenon::compute(), MapNeuron1::compute(), MapPopModel::compute(), StandardMap::compute(), MapVanderPol1::compute(), and MapWhales::compute().

◆ getTimeStep()

double MapType::getTimeStep ( int subdiv ) const

inlinevirtual

Returns the time step, which is 1 for a map, or the time t of integration in case of a time-t map of a flow.

This value may be different at each subdivision depth. May return an approximate value, especially for flows.

Reimplemented in MapOdeTimeT.

Definition at line 287 of file maptype.h.

◆ loadInternals()

void MapType::loadInternals ( chomp::multiwork::mwData & data )

inline

Retrieves the internal paramters and other data of the map from the mwData structure.

Definition at line 260 of file maptype.h.

References setParam().

Referenced by MapOdeTimeT::loadInternals().

◆ name()

std::string MapType::name ( ) const

inlinevirtual

Returns the name of the map.

This method should be replaced in derived classes.

Reimplemented in MapLorenz.

Definition at line 292 of file maptype.h.

◆ operator()()

void MapType::operator()	(	const IntervalType *	x,
		IntervalType *	y,
		int	dim,
		const spcCoord *	coord,
		int	subdiv
	)		const

inline

An interface to the function 'compute' based on intervals.

Definition at line 210 of file maptype.h.

References compute().

◆ operator=()

MapType & MapType::operator= ( const MapType & )

inlineprivate

The assignment operator should not be used.

Definition at line 167 of file maptype.h.

◆ saveInternals()

void MapType::saveInternals ( chomp::multiwork::mwData & data ) const

inline

Saves the internal parameters and other data of the map to the mwData structure.

Definition at line 245 of file maptype.h.

References leftParam, nParam, and rightParam.

Referenced by MapOdeTimeT::saveInternals().

◆ setParam()

void MapType::setParam	(	const double *	left,
		const double *	right,
		int	n
	)

inlinevirtual

Sets the parameters to the given intervals defined by their left and right coordinates.

Reimplemented in MapOdeApprox, and MapOdeTimeT.

Definition at line 172 of file maptype.h.

References leftParam, nParam, and rightParam.

Referenced by loadInternals(), MapOdeApprox::setParam(), and MapOdeTimeT::setParam().

◆ useOptInfo()

void MapType::useOptInfo ( const std::string & info )

inline

Uses a prevously saved line of information on optimization of the computation of the map for the same or nearby parameter values.

The map object may be fed with several lines and should interprete them to set up its optimization parameters.

Definition at line 240 of file maptype.h.

Member Data Documentation

◆ leftParam

double* MapType::leftParam

private

The left ends of the parameter intervals of the map.

Definition at line 130 of file maptype.h.

Referenced by getLeftParam(), saveInternals(), setParam(), and ~MapType().

◆ nParam

int MapType::nParam

private

The number of parameters defined.

Definition at line 136 of file maptype.h.

Referenced by getLeftParam(), getRightParam(), saveInternals(), and setParam().

◆ rightParam

double* MapType::rightParam

private

The right ends of the parameter intervals of the map.

Definition at line 133 of file maptype.h.

Referenced by getRightParam(), saveInternals(), setParam(), and ~MapType().

The documentation for this class was generated from the following file:

maptype.h
